ECOHYBRID is a new-generation fencing panel, designed with maximum durability, aesthetics, and security in mind. It features a unique cross-mesh structure, where the increased density of Ø4 mm wires in the central zone ensures exceptional rigidity and structural stability. Reinforced ribs and Ø5 mm wires further enhance the panel's resistance to deformation and mechanical damage.

PLASCOAT® PPA571

Thanks to the innovative Plascoat® PPA571 coating technology, EcoHybrid panels maintain excellent appearance and functionality for years — even in the most demanding weather conditions.

DURABLE CONSTRUCTION

EcoHybrid is the perfect solution for those seeking a durable, modern, and attractive fencing system — suitable for private properties, industrial areas, and public spaces.

VERSATILE APPLICATIONS

ECOHYBRID panel security fencing is a versatile solution for various applications. It offers both security and aesthetic appeal, blending seamlessly into any environment.

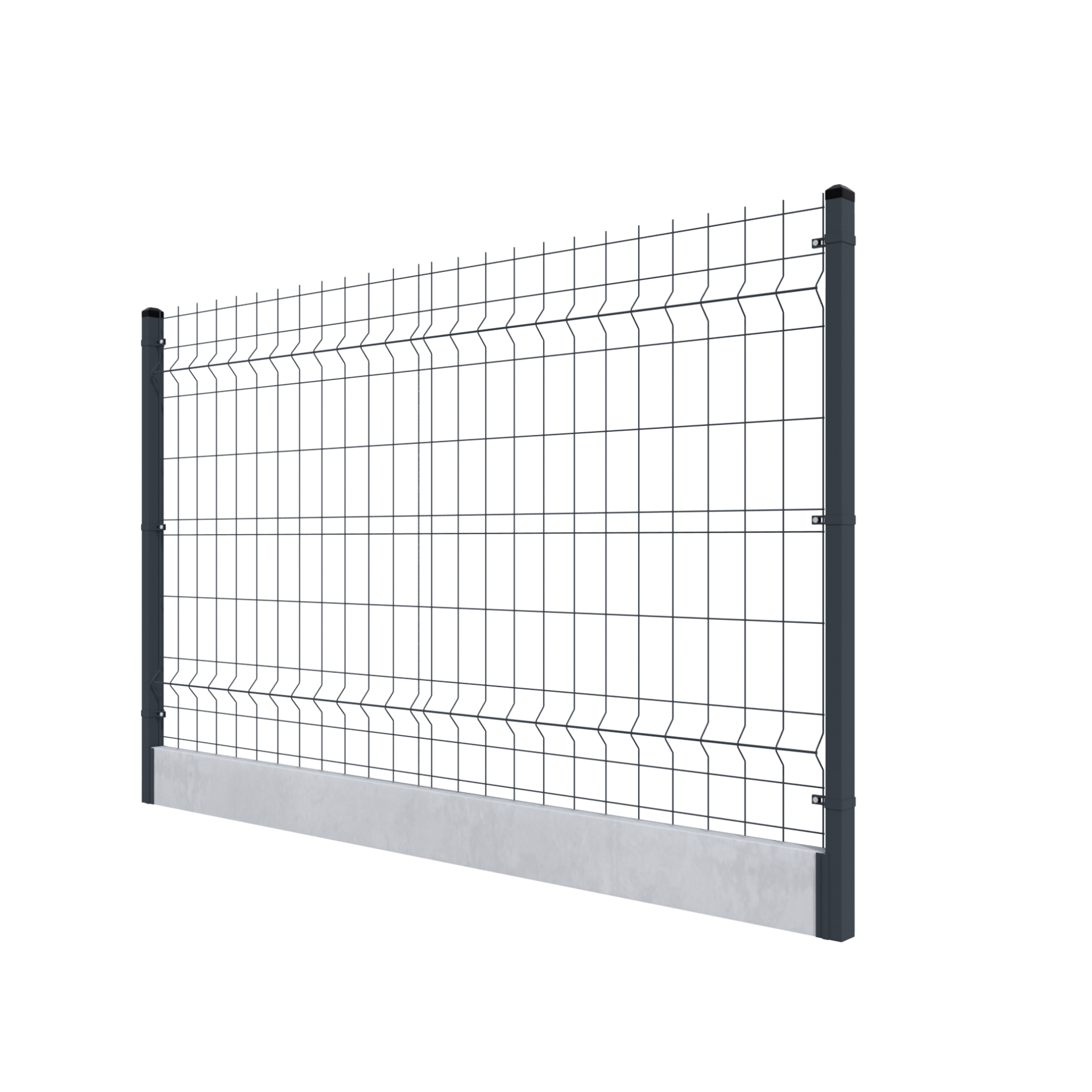

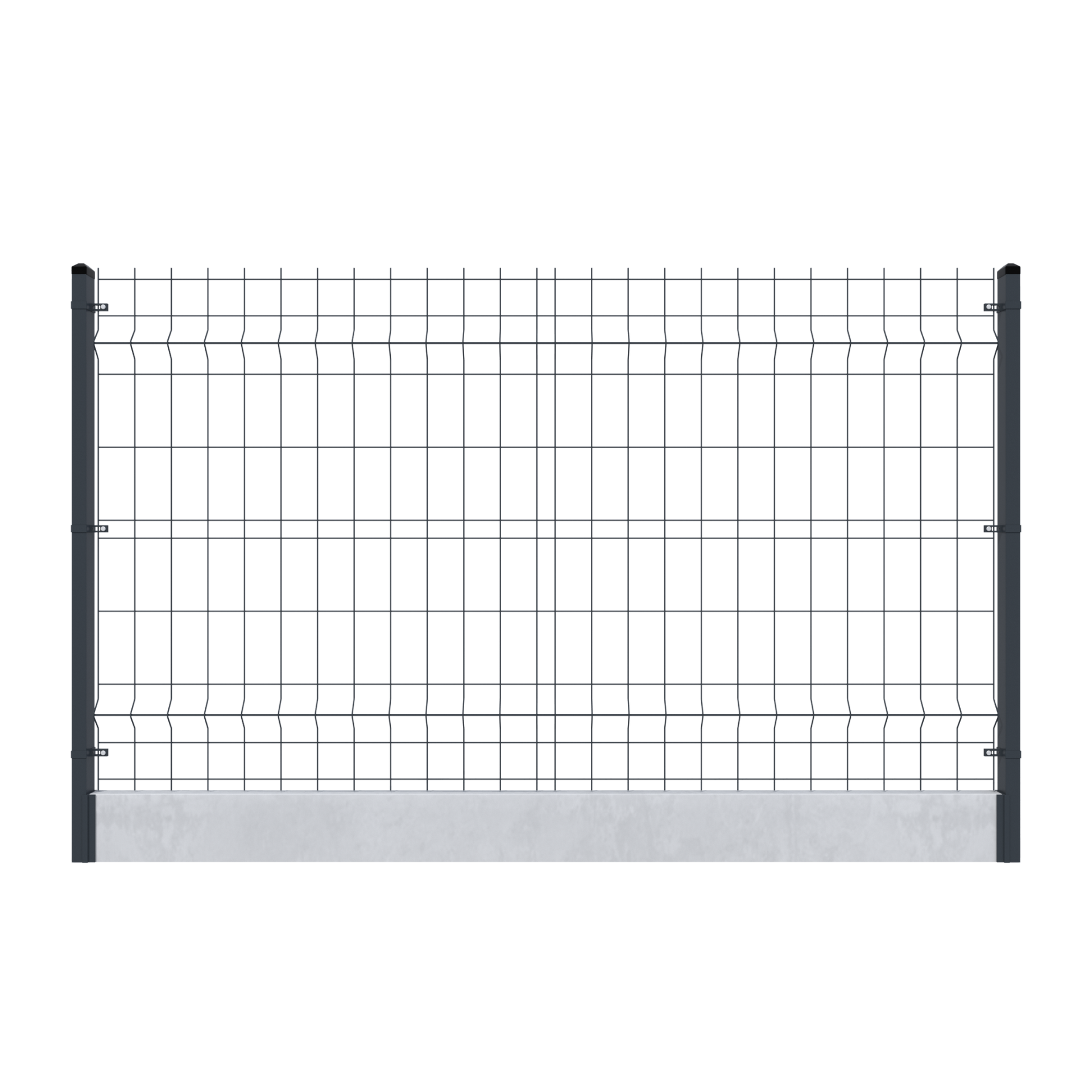

EcoHybrid SECURITY FENCING

EcoHybrid SECURITY FENCING

- Welded mesh panel made of horizontal and vertical steel wires with diameters: Ø4 mm, and Ø5 mm in reinforcing bends
- Mesh sizes: 50 × 200 mm, 100 × 200 mm, 100 × 100 mm; in reinforced bends: 60 × 50 mm, 60 × 100 mm
- Panel width: 2500 mm (26 vertical wires)

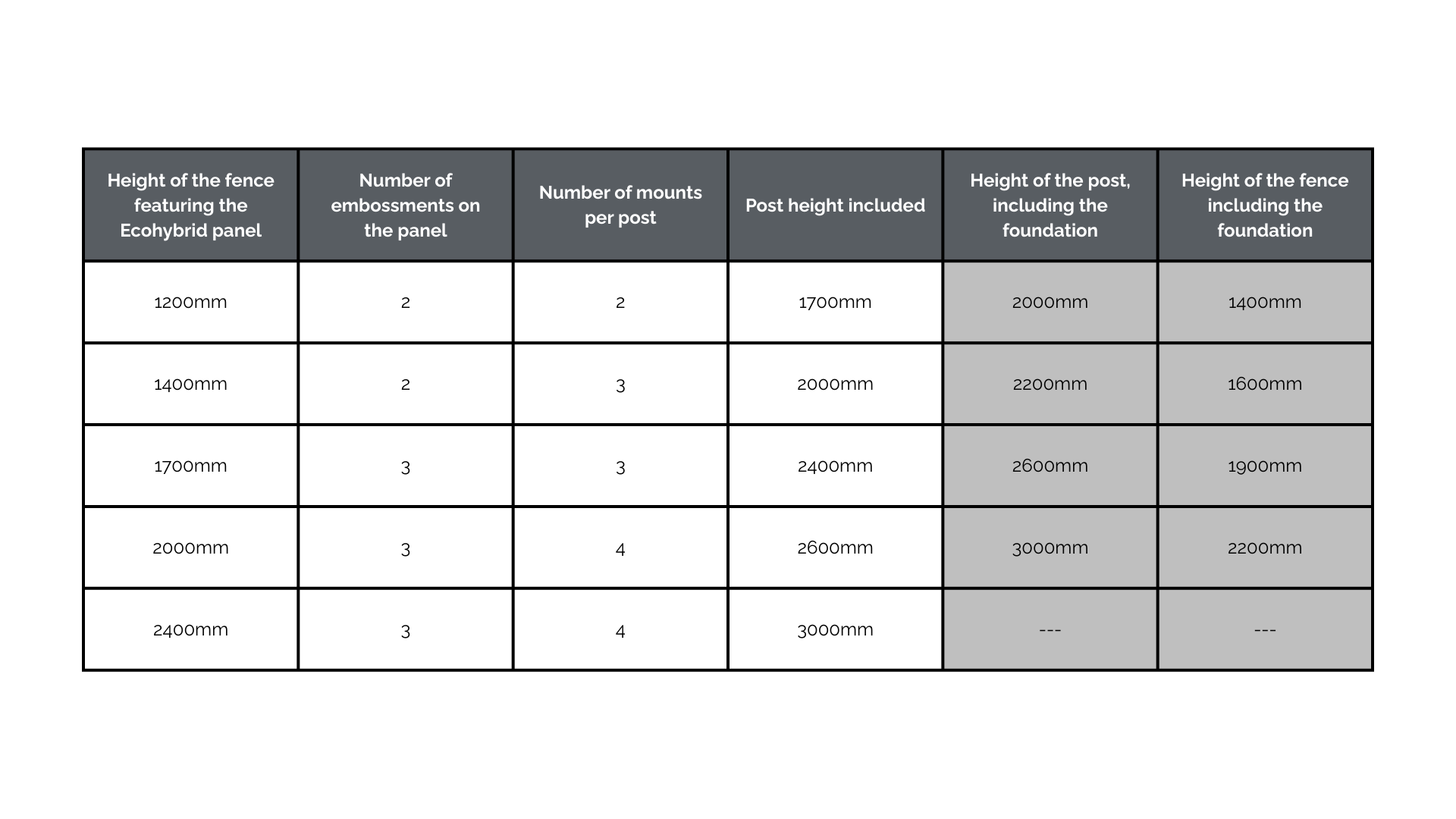

- Panel heights: 1200 mm, 1400 mm, 1700 mm, 2000 mm, 2400 mm
- Secured with 30 mm anti-climb spikes at both the top and bottom
- Powder coated using Plascoat® PPA571 FLUIDIZED BED technology
- Available RAL colours: 7016, 9005, 6005
- Fluidized bed coating technology ensures 25 years of anti-corrosion protection

Technical Specifications – Fence Posts:
- Cold-formed galvanised steel profile: 40 × 60 × 1.2 mm
- Post heights: 1700 mm, 2000 mm, 2200 mm, 2400 mm, 2600 mm, 3000 mm, 3400 mm
- Powder coated with polyester paint

Technical Specifications – Fixing Components (post + panel):
- Intermediate fixings
- 90° corner fixings
- Start and end fixings
- Galvanised M8 bolts and nuts
- Plastic panel-to-screw clips
- Available RAL colours: 7016, 9005, 6005

Technical Specifications – Precast Concrete Plinths:
- Height: 200 mm, Width: 40 mm, Length: 2520 mm
- Reinforced slab with Ø6 mm steel rods, made of architectural concrete
- Mounted to posts using U-shaped plastic brackets in the same colour as the post

The face of the EcoHybrid system - Where EcoHybrid offers durability and versatility, HybridDecor enters with sophistication — an architectural accent that defines the character of the fence. It is a panel created for prestigious entrance zones, gates, and wickets, where design must match quality and craftsmanship.

For architects. For investors. For those who refuse to compromise.

PLASCOAT® PPA571

The fine-mesh pattern, absence of spikes, and clean, geometric form give it a SOHO-inspired aesthetic — modern, minimal, yet bold. Finished with Plascoat® PPA571 in a timeless RAL palette, HybridDecor doesn’t just catch the eye — it leaves a lasting impression.

IDEAL AS:

- Infill for sliding or double-leaf gates
- A feature in modern wickets and front-facing fence sections
- A stylish accent paired with EcoHybrid fencing

VERSATILE APPLICATIONS

HybridDecor is elegance without excess, strength without weight, and style without noise. Simply put — modern fencing with class.

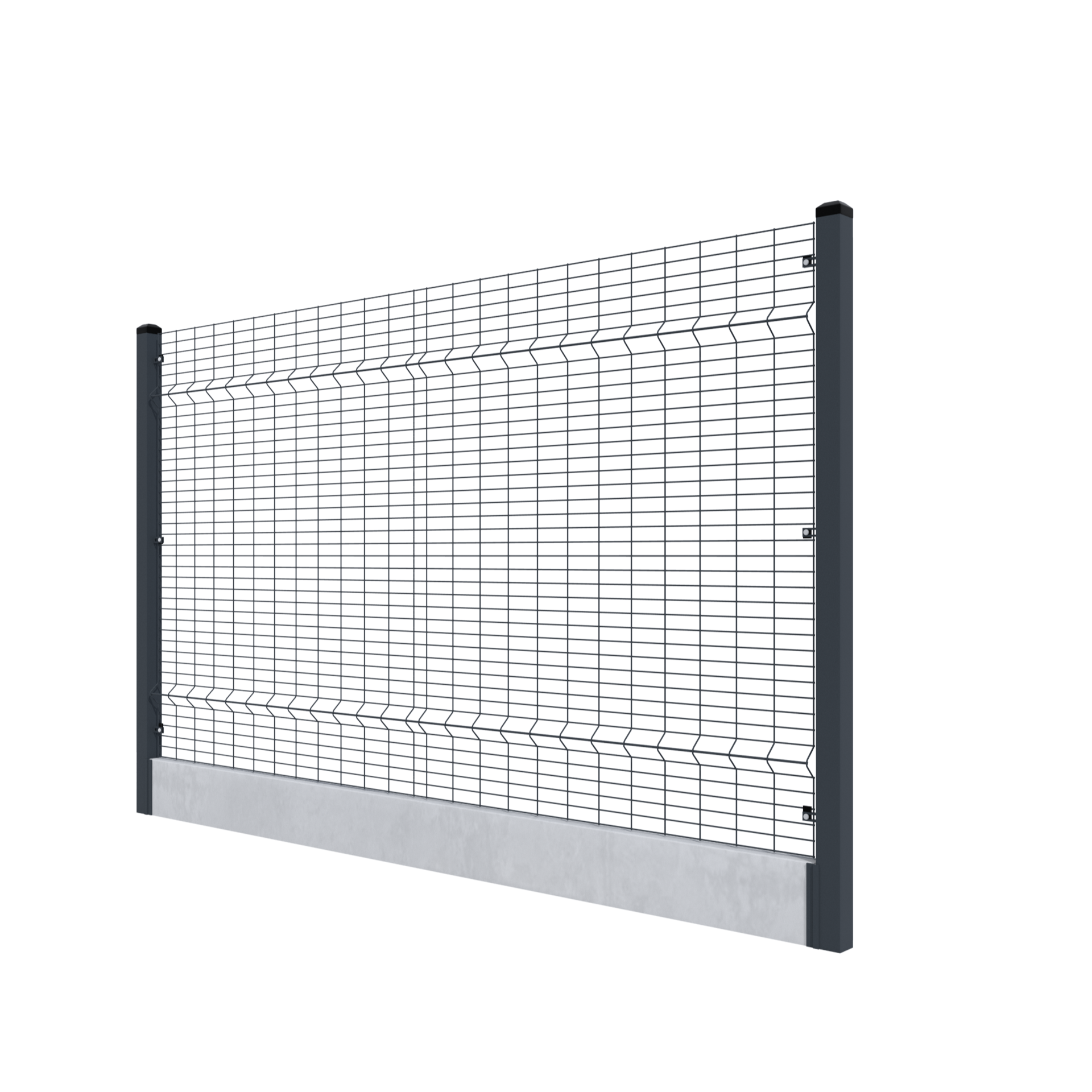

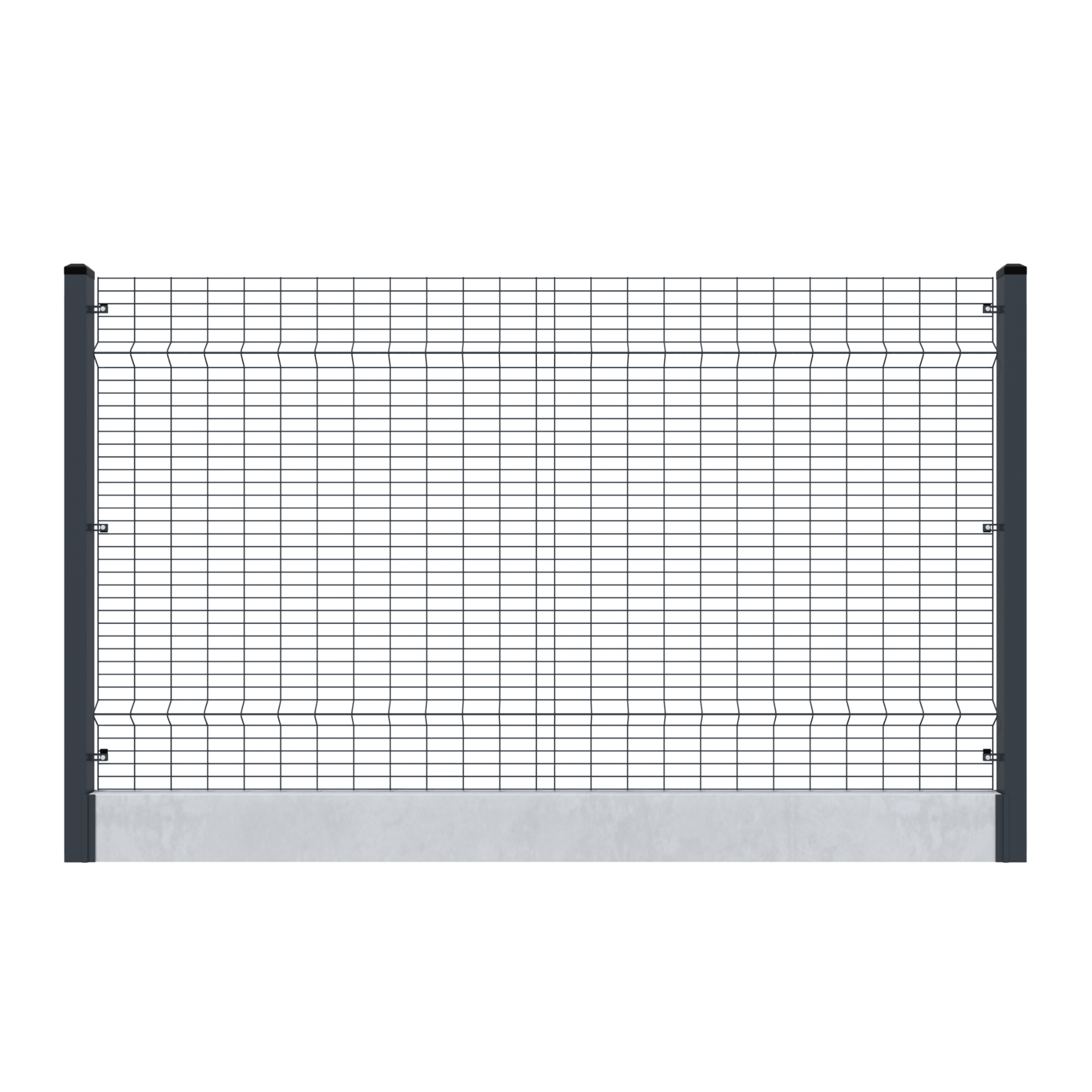

HybridDecor SECURITY FENCING

HybridDecor SECURITY FENCING

- Welded mesh panel made of horizontal and vertical steel wires with diameters: Ø4 mm, and Ø5 mm in reinforcing bends
- Mesh sizes: 35 × 100 mm, 35 × 50 mm; in reinforced bends: 35 × 50 mm, 35 × 100 mm
- Panel width: 2500 mm (26 vertical wires)
- Panel heights: 1200 mm, 1400 mm, 1700 mm
- No spikes at the top or bottom of the panel
- Powder coated using Plascoat® PPA571 FLUIDIZED BED technology
- Available RAL colours: 7016, 9005, 6005
- Fluidized bed coating technology ensures 25 years of anti-corrosion protection

Technical Specifications – Fence Posts:
- Cold-formed galvanised steel profile: 60 × 60 × 1.5 mm
- Post heights: 2200 mm, 2400 mm, 2600 mm
- Powder coated with polyester paint

Technical Specifications – Fixing Components (post + panel):
- U-type fixings screwed to the post
- Galvanised M8 bolts and nuts
- Plastic panel-to-screw clips
- Available RAL colours: 7016, 9005, 6005


Technical Specifications – Precast Concrete Plinths:
- Height: 200 mm, Width: 40 mm, Length: 2520 mm
- Reinforced slab with Ø6 mm steel rods, made of architectural concrete
- Mounted to posts using U-shaped plastic brackets in the same colour as the post

HybridDecor WICKET

LOCINOX LAKZ P1

SURFACE MOUNTED GARDEN GATE LOCK

LOCINOX SAKL QF

STAINLESS STEEL INDUSTRIAL KEEP

LOCINOX GBM12-DP40

STAINLESS STEEL GARDEN GATE HINGE SET

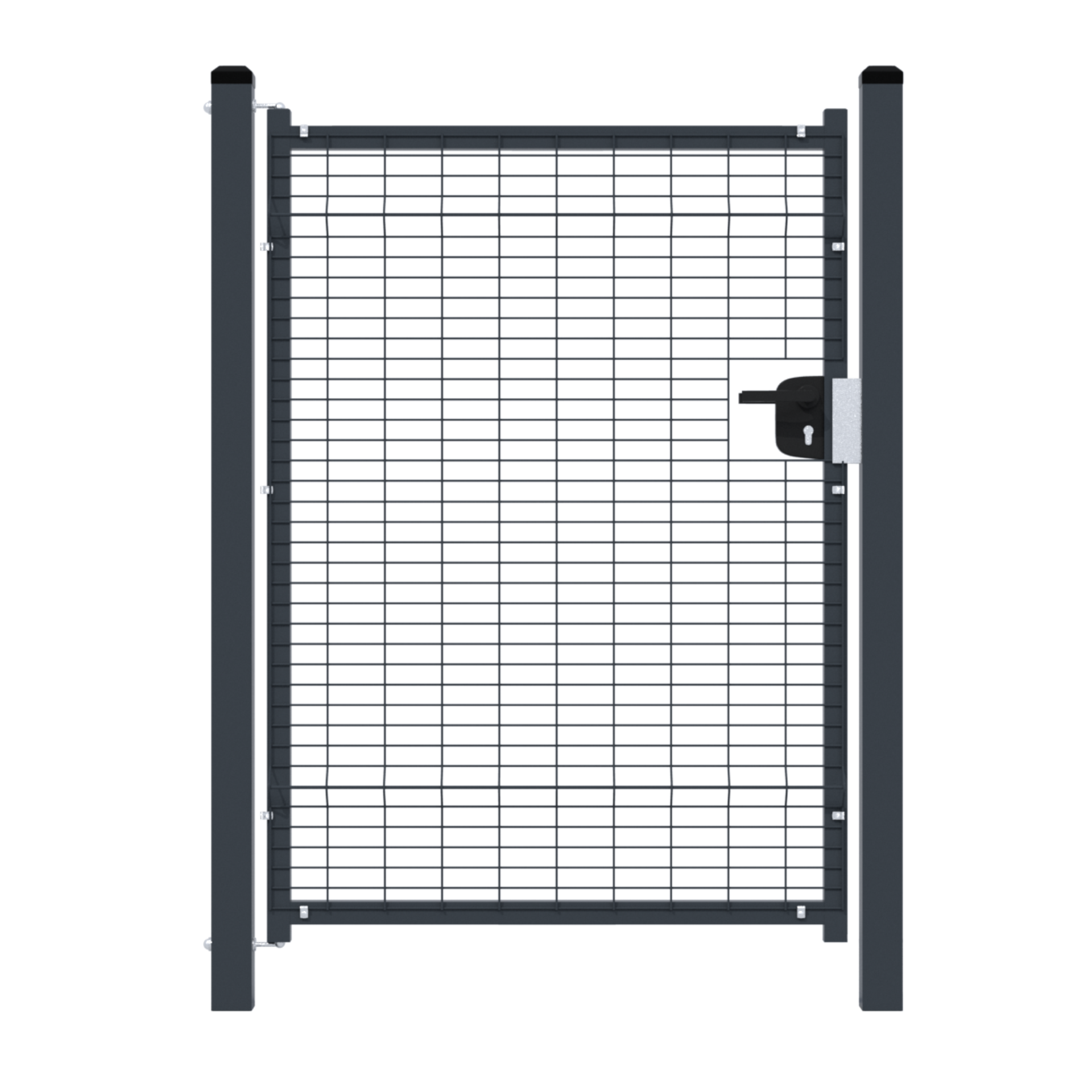

HybridDecor WICKET

- Frame made from galvanised profiles: 40 × 40 × 1.5 mm
- Posts made from galvanised profiles: 70 × 70 × 2 mm
- Gate frame filled with HybridDecor panel
- Panels attached to the frame using screw-on clips
- Plastic caps: (2 pcs.) 70×70 black, (2 pcs.) 40×40 black
- Corrosion protection: galvanised steel, double-layer DUPLEX® thermoplastic zinc coating, polyester paint in RAL7016, RAL9005, RAL6005

Standard wicket dimensions:
- Frame width: 1000 mm
- Heights: 1260 mm, 1460 mm, 1760 mm (matching HybridDecor panels)

Fitted with LOCINOX accessories:
- Stainless steel lock with synthetic housing – model LAKZP1
- Stainless steel latch receiver – model SAKLQF
- Stainless steel hinges – model GBM 12 (2 pcs.)

LOCINOX LAKZ P1

SURFACE MOUNTED GARDEN GATE LOCK

LOCINOX GBM16-DP40

STAINLESS STEEL GARDEN GATE HINGE SET

LOCINOX SAKL QF

STAINLESS STEEL INDUSTRIAL KEEP

LOCINOX

INTERLOCKING DROP BOLT

LOCINOX

GROUND CATCHER FOR DROP BOLTS

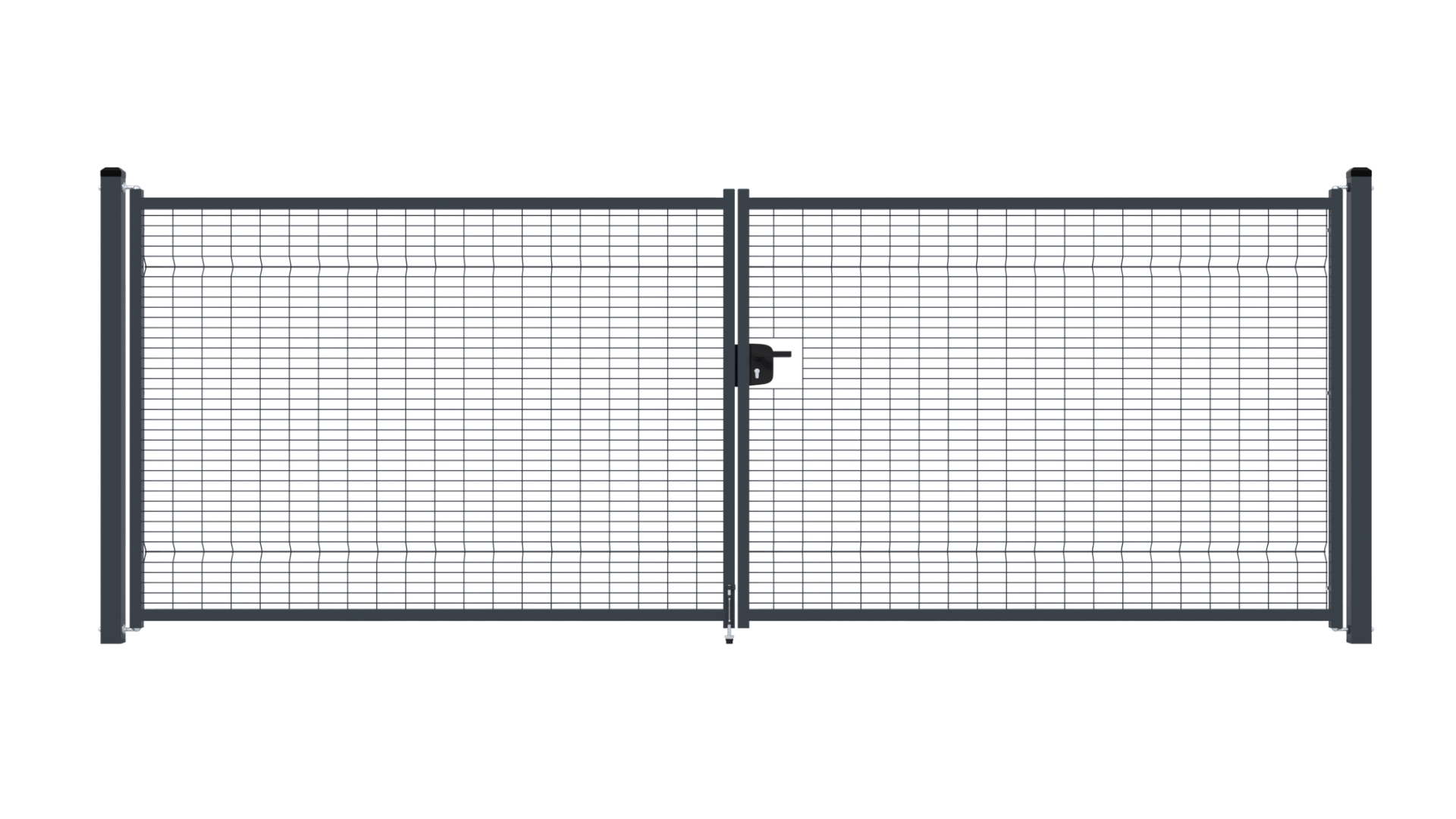

HybridDecor DOUBLE LEAF GATE

- Frames made from galvanised profiles: 40 × 40 × 1.5 mm
- Posts made from galvanised profiles: 70 × 70 × 2 mm
- Frames filled with HybridDecor panels
- Panels attached to frame using screw-on clips
- Plastic caps: (2 pcs.) 70×70 black, (4 pcs.) 40×40 black
- Corrosion protection: galvanised steel, DUPLEX® thermoplastic zinc coating, polyester paint in RAL7016, RAL9005, RAL6005

Fitted with LOCINOX accessories:
- Stainless steel lock with synthetic housing – model LAKZP1
- Stainless steel latch receiver – model SAKLQF
- Galvanised steel hinges – model GBM 16 (2 pcs.)
- Galvanised lower drop bolt – model VSF
- Drop bolt receiver – model EGS

Standard gate dimensions:
- Frame width: 2 × 1500 mm (total 3 m), 2 × 2000 mm (total 4 m), 2 × 2500 mm (total 5 m)
- Gate heights: 1260 mm, 1460 mm, 1760 mm

Gate handle with polyamide catches

1 PC screwed to the post

NICE ELAC

90-230V LED LAMP WITH BUILT-IN ANTENNA

Polyamide-coated guide roller for the top rail

1 PC screwed to the post

NICE ROBO 600

SET FOR SLIDING GATES

Polyamide-coated pendulum rollers for the bottom rail

2 PCS

Polyamide-coated gear rack for the gate actuator

1 PC screwed to the bottom part of the frame

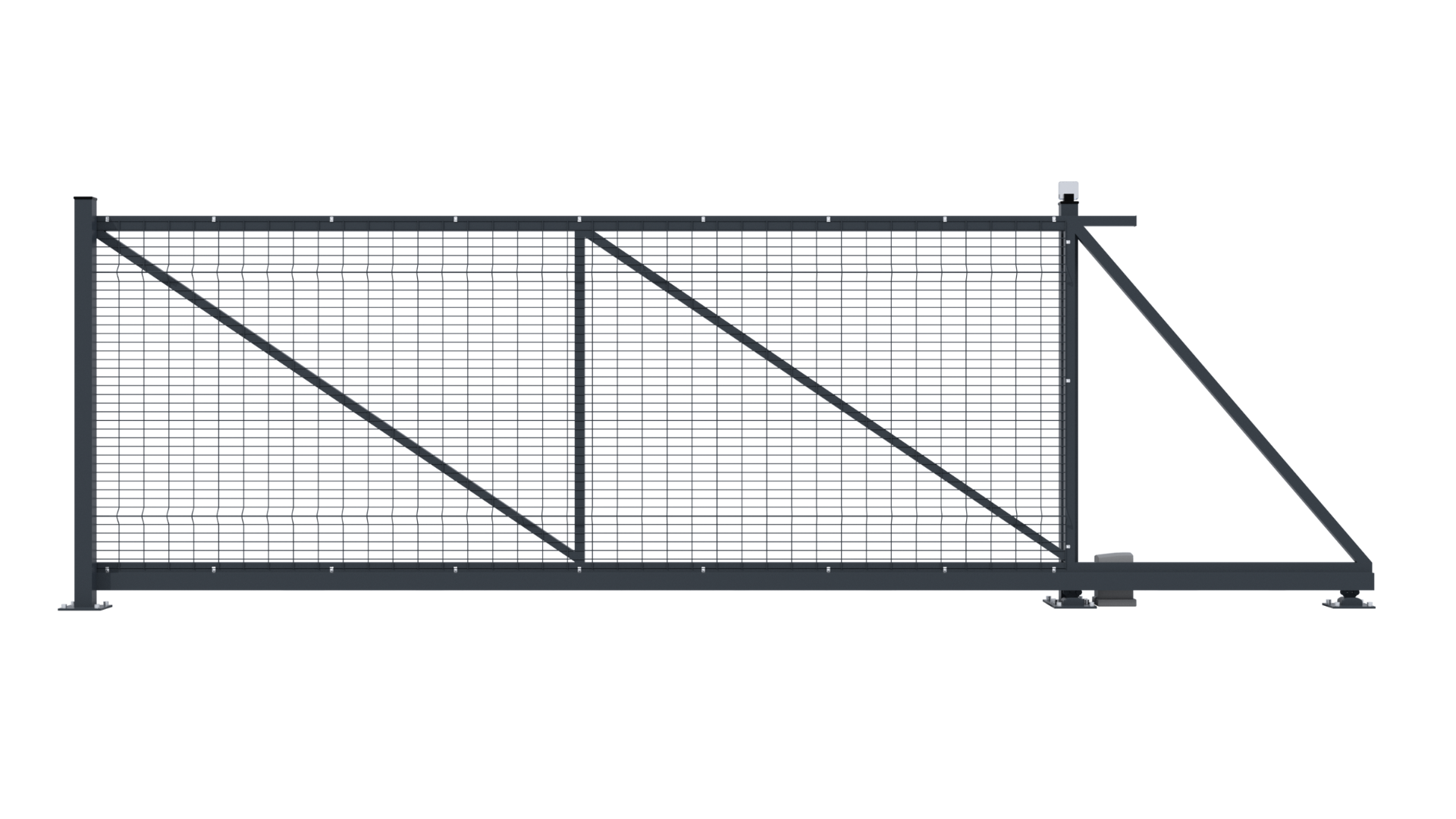

HybridDecor AUTOMATED CANTILEVER GATE

Support frame made from galvanised steel profiles:
- Top profile: 40 × 60 × 2 mm with welded rail for upper roller
- Frame profiles: 40 × 40 × 1.5 mm
-Lower half-open profile (roller track): 70 × 70 × 4 mm
- Frame filled with HybridDecor panels attached via screw-on clips
- Gate posts (2 pcs.): 70 × 70 × 2 mm with baseplate for anchoring
- Black plastic end caps for profiles
- Corrosion protection: galvanised steel, DUPLEX® thermoplastic zinc coating, polyester paint in RAL7016, RAL9005, RAL6005

Gate accessories:
- Polyamide-coated swinging rollers for lower rail (2 pcs.)
- Polyamide-coated guide roller for upper rail, bolted to post (1 pc.)
- Polyamide end stop bolted to post (1 pc.)
- Polyamide gear rack for actuator, bolted to lower frame
- NICE® automation system: warning light, photocells, remote control

Standard driveway widths:
- L = 3 m (total length 3900 mm), L = 4 m (total length 5200 mm), L = 5 m (total length 6500 mm)
- Gate heights: 1300 mm, 1500 mm, 1800 mm

GUARDENA SYSTEM COLOURS

GUARDENA fences are built to last, combining the protective properties of zinc coating with the aesthetic enhancement of a varnish coating. This dual protection ensures your fence remains beautiful and resilient in all weather conditions. Choose from either hot-dip galvanised or galvanised with a polyester paint coating for long-lasting performance and visual appeal.

DARK GREEN | RAL6005

ANTHRACITE GREY | RAL7016

BLACK | RAL9005
