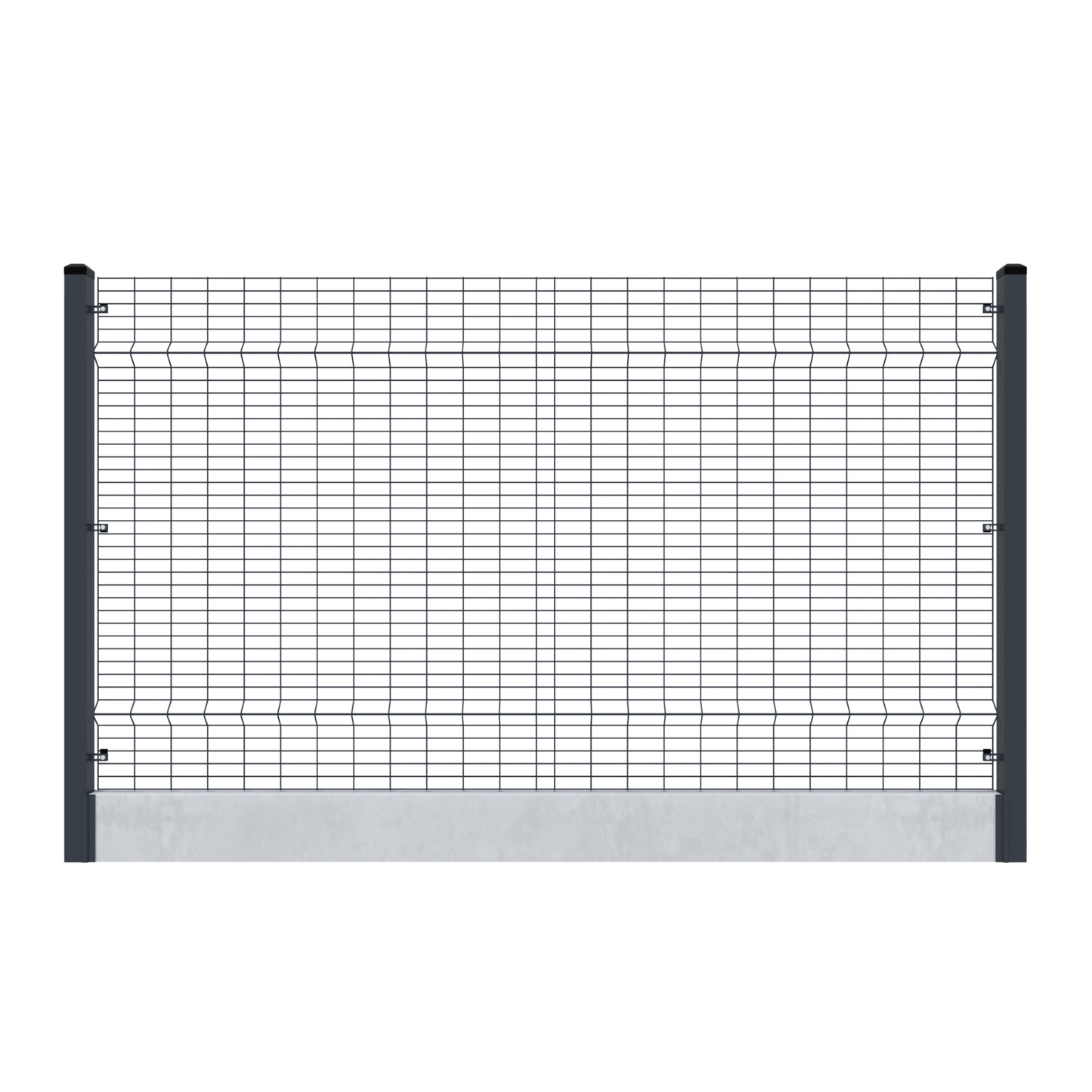

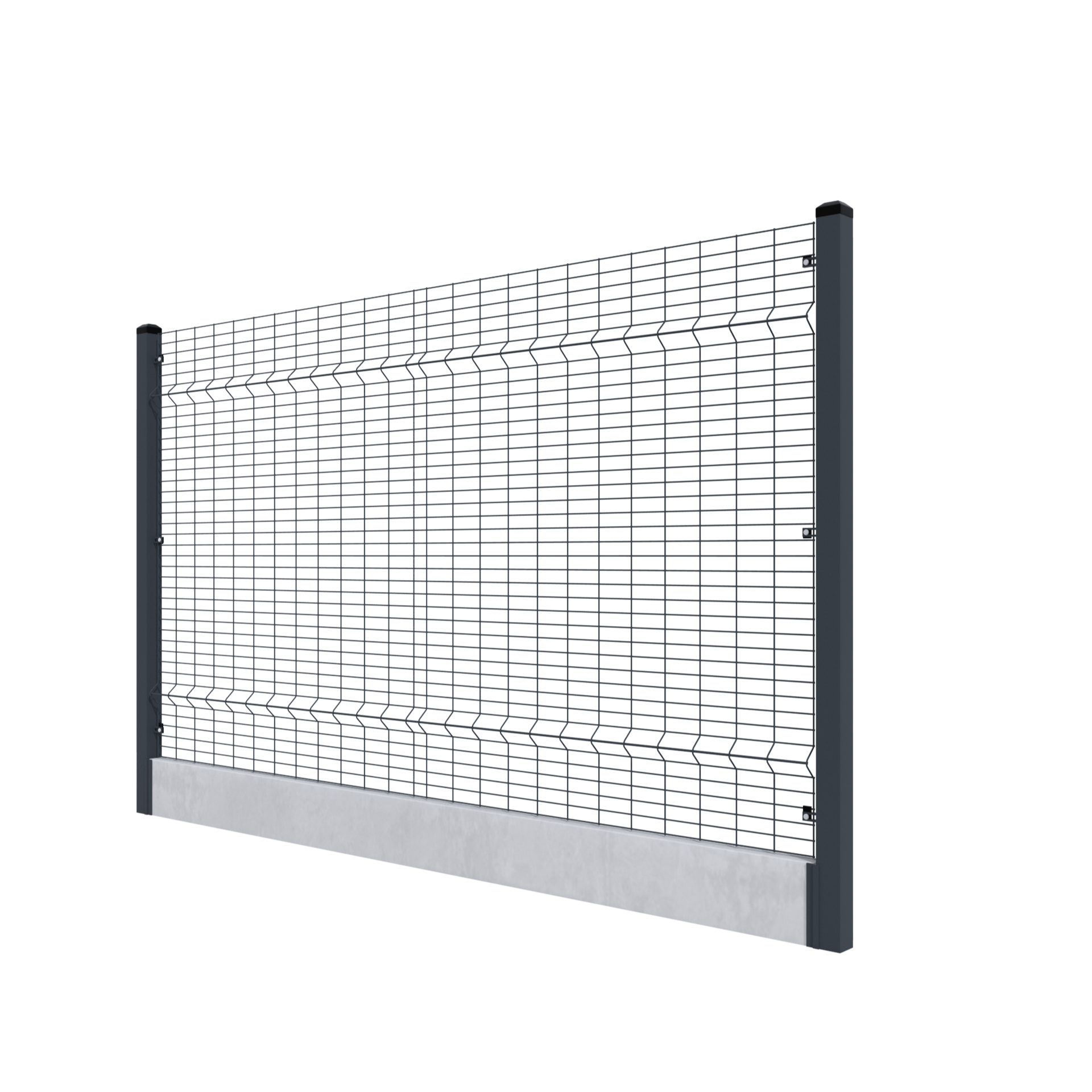

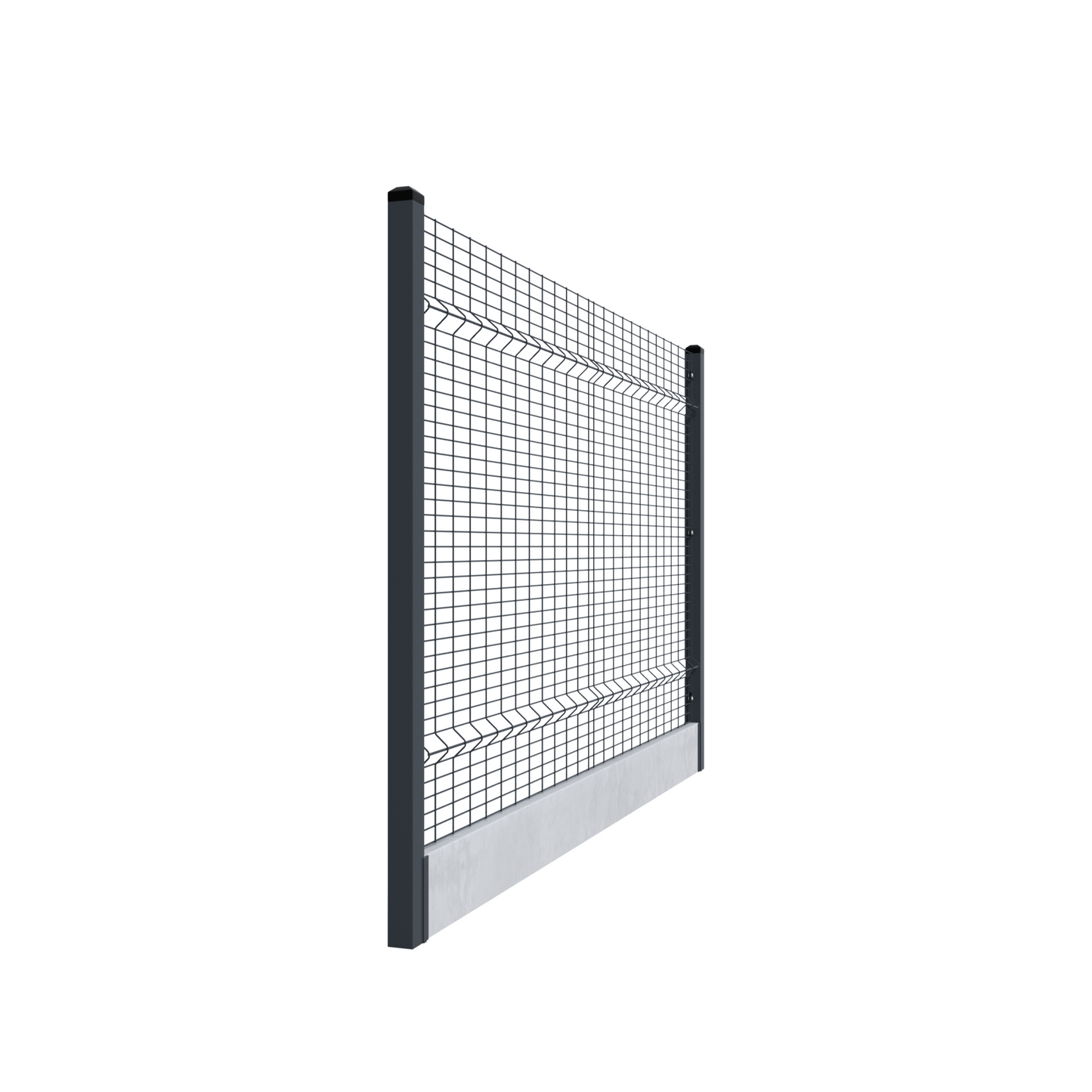

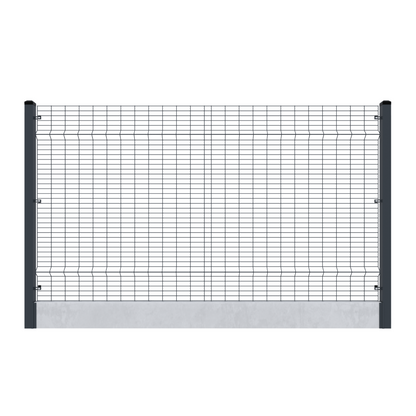

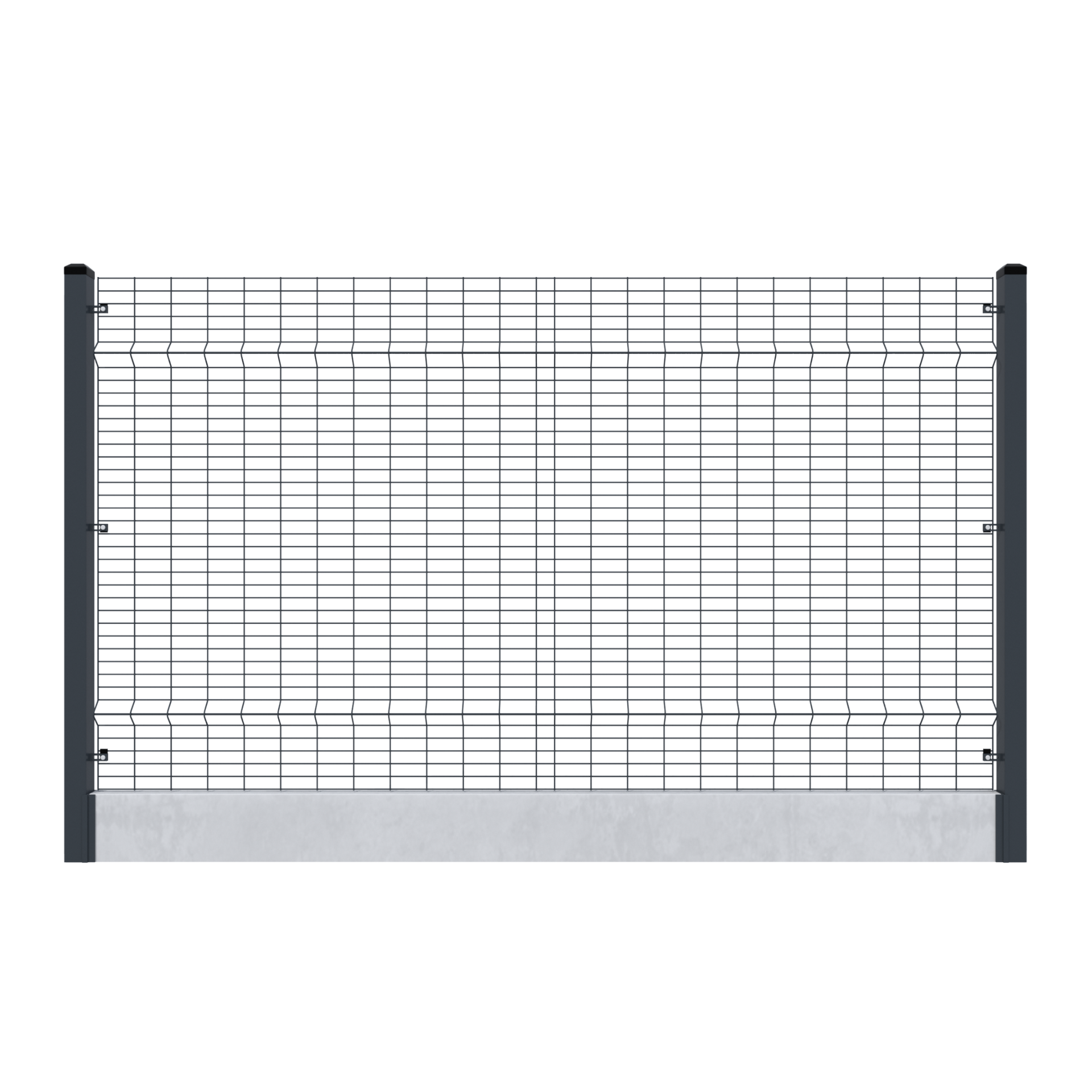

HybridDecor Security Fencing - 2500mm with Concrete Gravel Board

- Welded mesh panel made of horizontal and vertical steel wires with diameters: Ø4 mm, and Ø5 mm in reinforcing bends
- Mesh sizes: 35 × 100 mm, 35 × 50 mm; in reinforced bends: 35 × 50 mm, 35 × 100 mm
- Panel width: 2500 mm (26 vertical wires)
- Panel heights: 1200 mm, 1400 mm, 1700 mm
- No spikes at the top or bottom of the panel
- Powder coated using Plascoat® PPA571 FLUIDIZED BED technology
- Available RAL colours: 7016, 9005, 6005
- Fluidized bed coating technology ensures 25 years of anti-corrosion protection

Technical Specifications – Fence Posts:
- Cold-formed galvanised steel profile: 60 × 60 × 1.5 mm
- Post heights: 2200 mm, 2400 mm, 2600 mm
- Powder coated with polyester paint

Technical Specifications – Fixing Components (post + panel):
- U-type fixings screwed to the post
- Galvanised M8 bolts and nuts
- Plastic panel-to-screw clips
- Available RAL colours: 7016, 9005, 6005

Technical Specifications – Precast Concrete Plinths:
- Height: 200 mm, Width: 40 mm, Length: 2520 mm
- Reinforced slab with Ø6 mm steel rods, made of architectural concrete
- Mounted to posts using U-shaped plastic brackets in the same colour as the post
