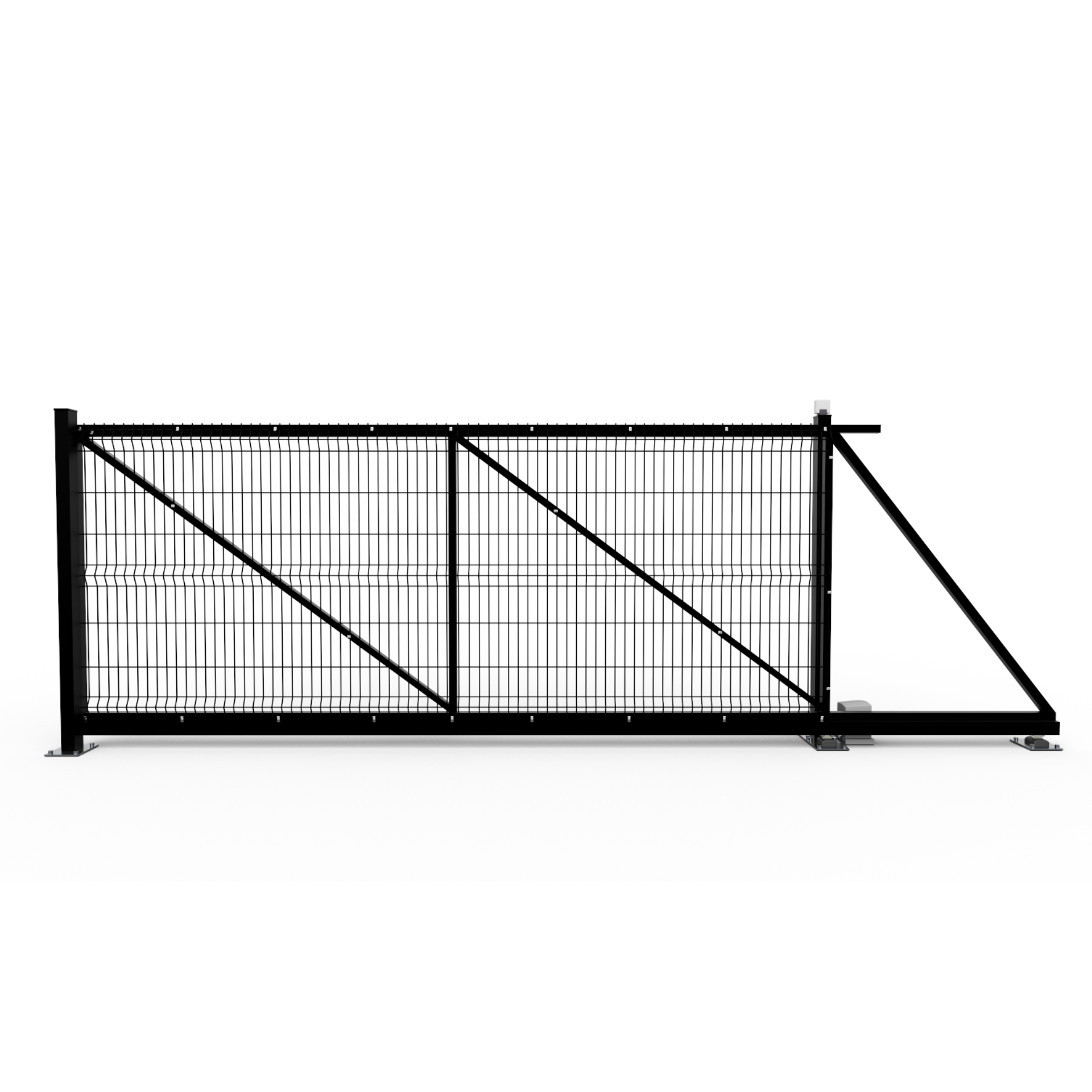

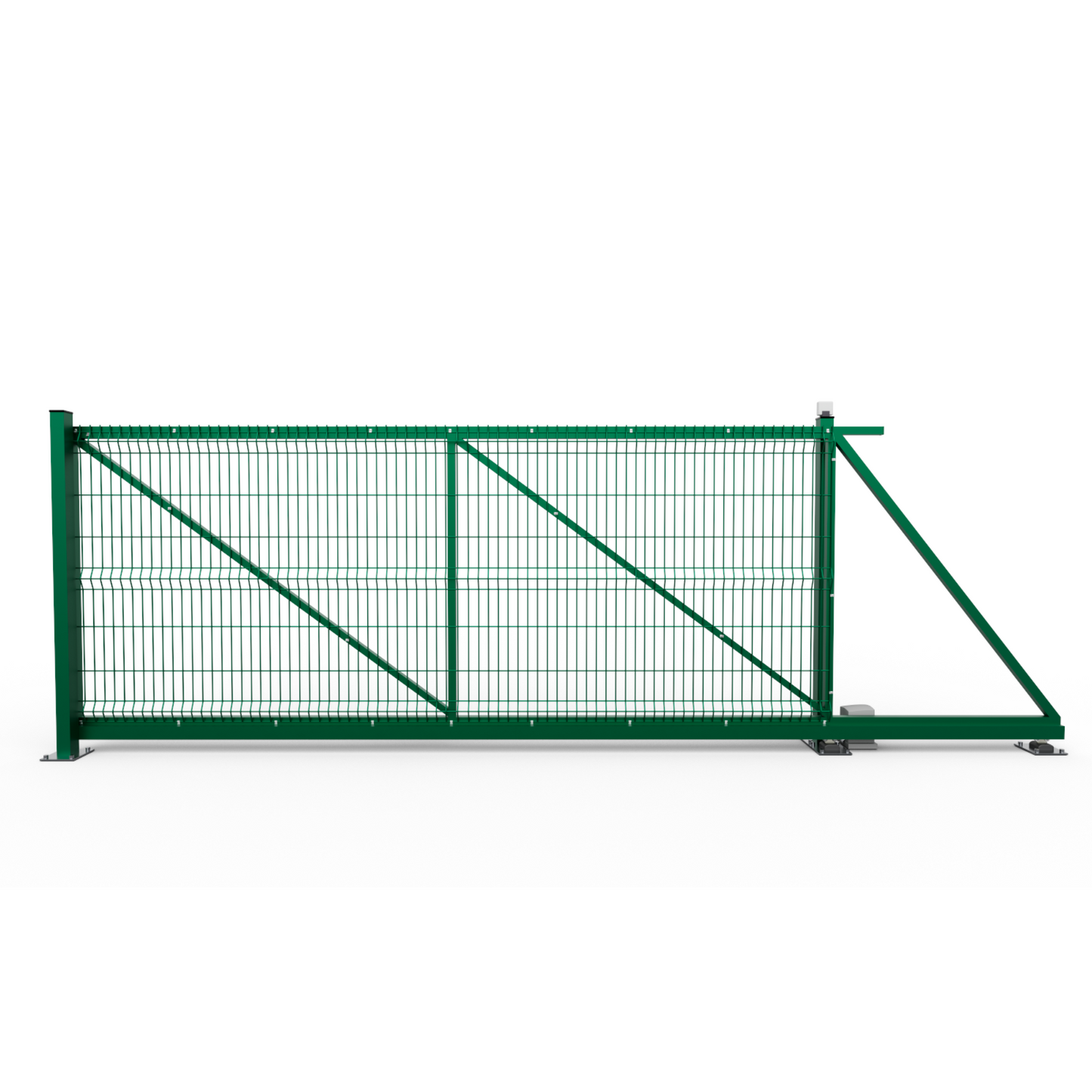

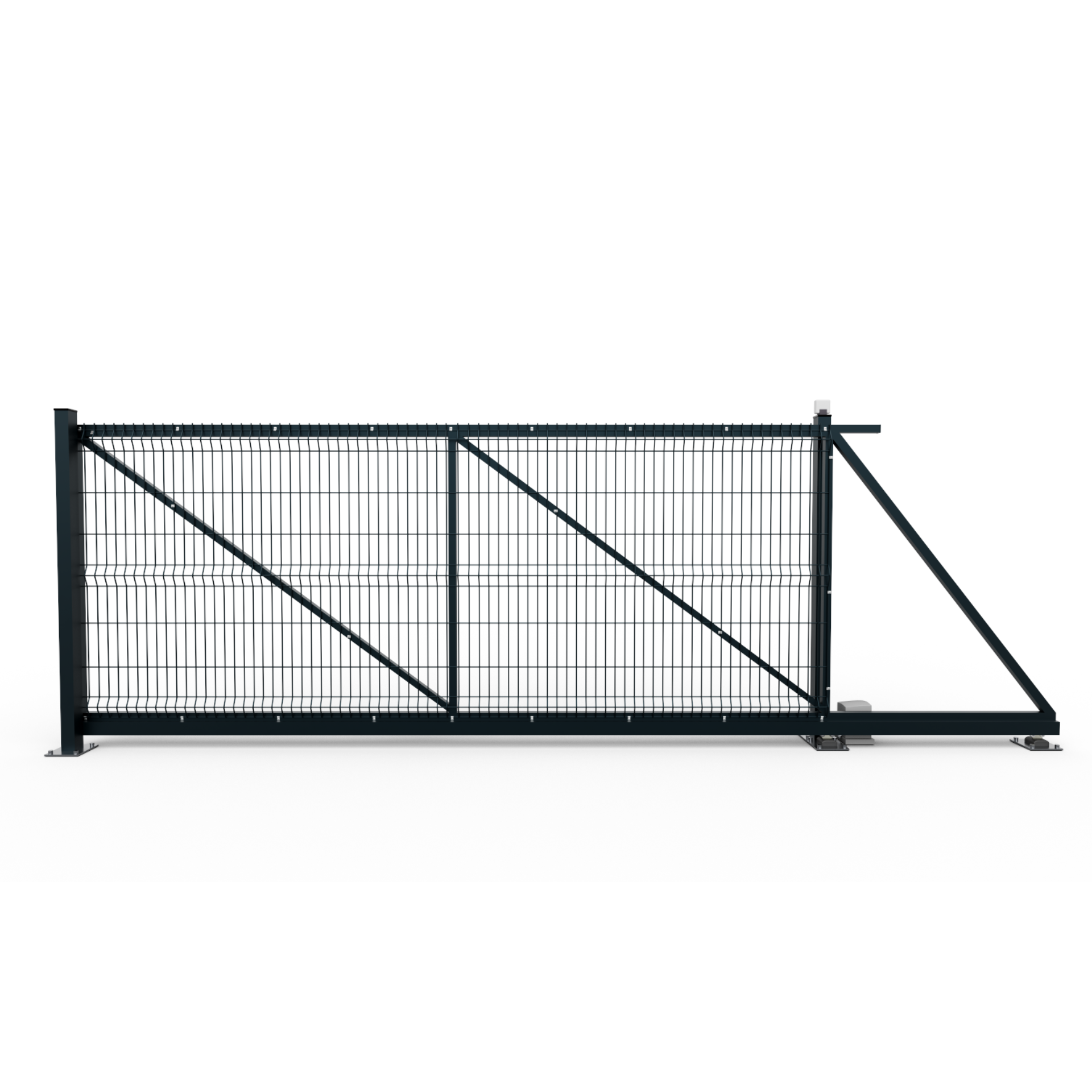

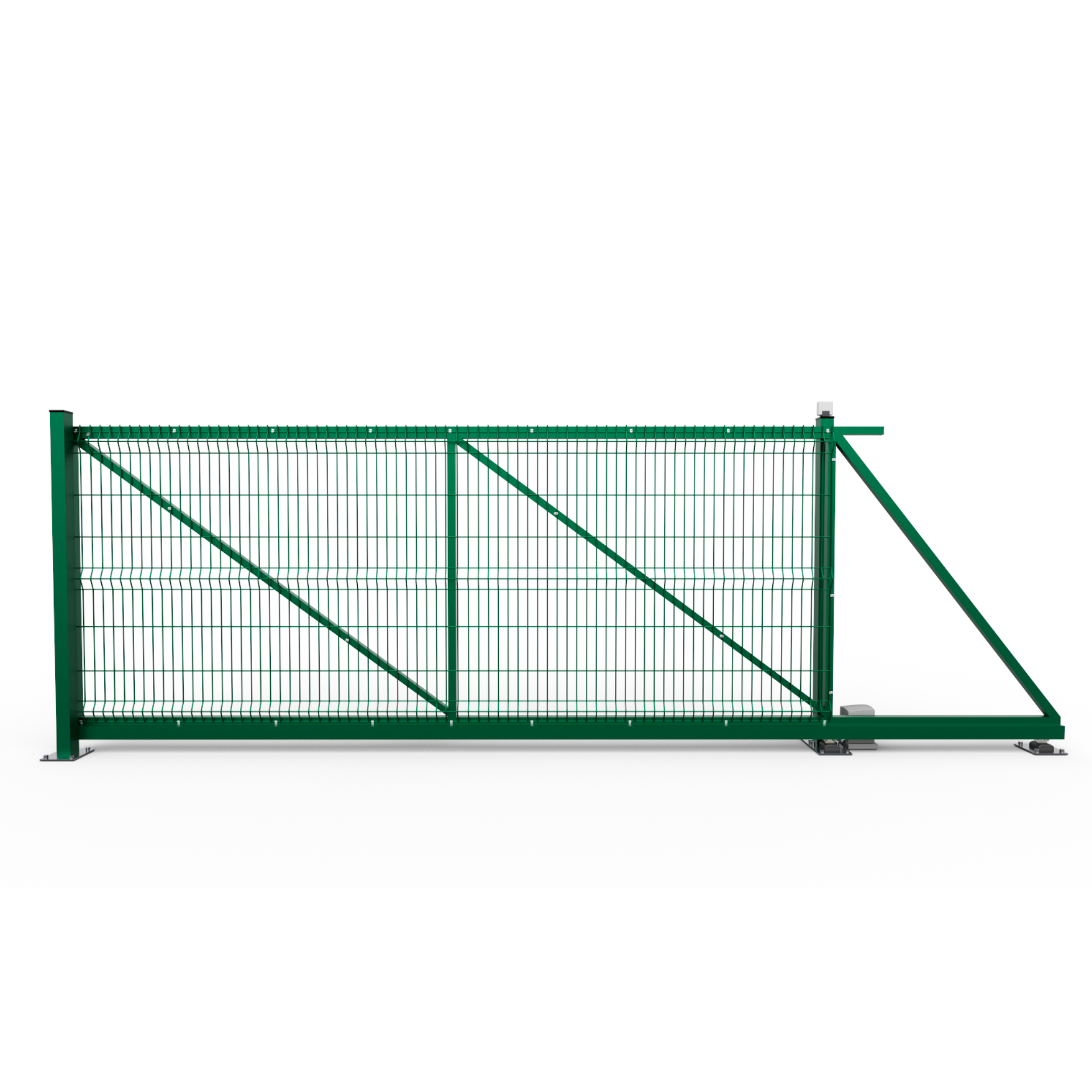

Twin Mesh 2D Automated Cantilever Gate

Supporting frame made of galvanized steel profiles with dimensions:
– Top profile 40 mm x 60 mm x 2 mm with welded rail guiding the upper roller
– Frame profiles 40 mm x 40 mm x 1.5 mm
– Bottom profile, semi-open (working element, roller guide) 70 mm x 70 mm x 4 mm
– Frame filled with 2D panel screwed to the gate frame with clips
– Gate posts (2 pcs) with dimensions 70 mm x 70 mm x 2 mm with a foot screwed to the foundation
– Black plastic profile end caps
– Corrosion protection: galvanized steel, double coating with thermoplastic zinc in DUPLEX® system, polyester paint in RAL7016, RAL9005, RAL6005 colours

Gate accessories:
– Polyamide-coated pendulum rollers for the bottom rail (2 pcs)
– Polyamide-coated guide roller for the top rail, screwed to the post (1 pc)
– Gate handle with polyamide catches, screwed to the post (1 pc)
– Polyamide-coated gear rack for the gate actuator, screwed to the bottom part of the frame
– NICE® actuator and automation parts (warning lamp, photocells, remote control)

Standard gate dimensions:
– Driveway width L – 3 m (total length 3900 mm), L – 4 m (total length 5200 mm), L – 5 m (total length 6500 mm), L – 6 m (total length 7800 mm)
– Gate heights adapted to 2D panels: 1300 mm, 1500 mm, 1700 mm, 1900 mm
